Product description

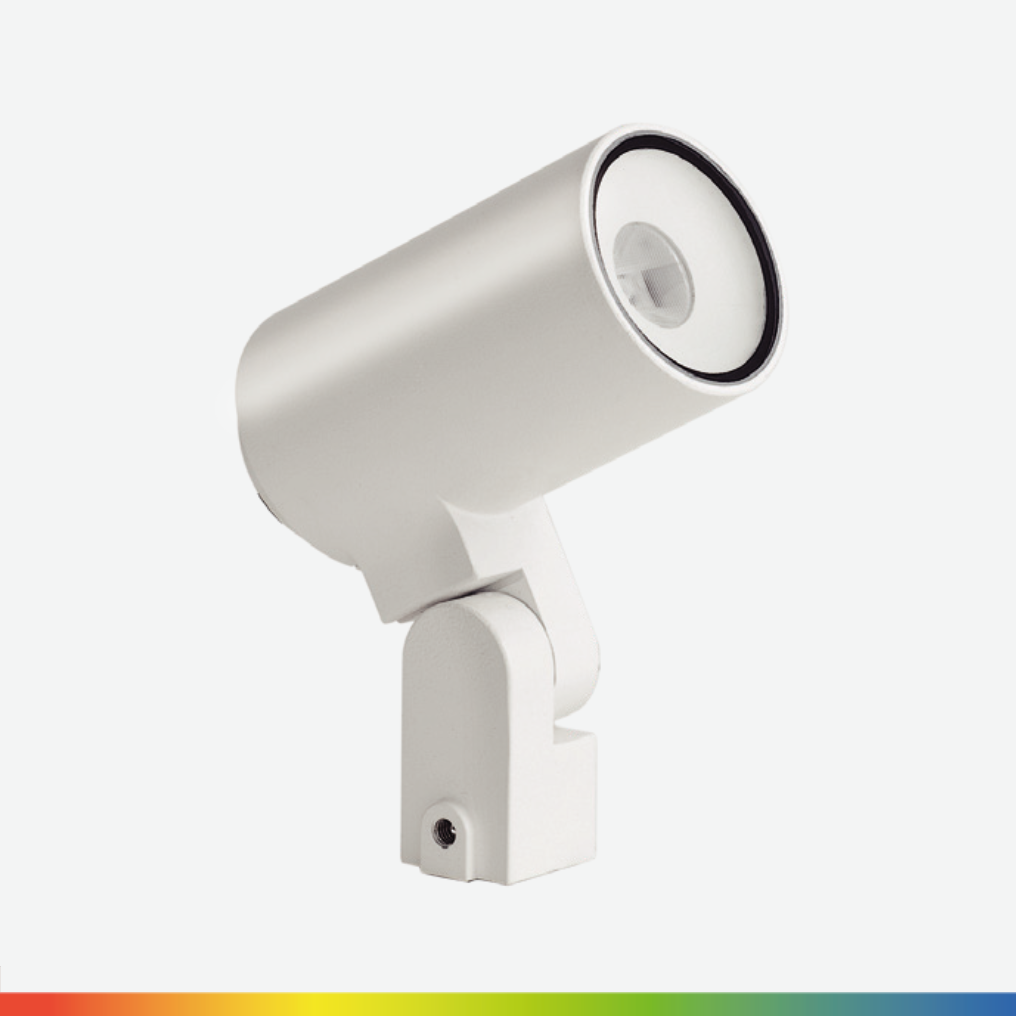

Multi - Purpose Floodlight. On/off, Dimming versions available; Ambient temperature: -40°C~ +50°C; Service life ≥35000 hours; IP66, IK06, Electrical
protection:
Product Overview
| Materials | Housing - 6063 –T5 + Flame Resistant Polycarbonate (Class V - 0); Glass - 3mm tempered glass, transmittance 93%. |
| Gear | Integrated electronic driver with thermal and overload protection. Power output ±10%. |
| Finishing | Mechanical and chemical anti - corrosion pre - treatment. AKZO - NOBEL UV - resistant polyester exterior powder - coating system. Normal UV protection for 10 years. |
| Installation | On/Off Version: Come with 1.2m 2x1mm2power cable 0/1 - 10V, PWM: Come with 1.2m 4 - cores (4 x 0.5mm2)2x1mm2power cable + 2x0.5mm2signal cable DMX Version: Come with 1.2m 6 - cores (6 x 0.5mm2)2x1mm2power cable + 4x0.3mm2signal cable Cable in Ø6 - 8mm. Please refer to installation guide. |
| Accessories | 01: Spike 02: AG - 2220 03: 705 Electric Connection Box |
Download CAD
Download PDF
Download E-catalog
Download Techsheet
| 050.006 | 8° | 0.5 kg | ||||
| LED | 1×1.5W | 2.2W | ON/OFF | DC 24V | 2700k, 218 lm | Ra≥80 |
| 0 - 10V | DC 24V | 3000k, 229 lm | Ra≥80 | |||
| 1 - 10V | DC 24V | 4000k, 235 lm | Ra≥80 | |||
| PWM | DC 24V | 5700k, 239 lm | Ra≥80 | |||
| DMX | DC 24V |
 |
| 050.006 | 8° | 0.5 kg | ||||
| LED | 1×1.5W | 2.2W | ON/OFF | DC 24V | 2700k, 218 lm | Ra≥80 |
| 0 - 10V | DC 24V | 3000k, 229 lm | Ra≥80 | |||
| 1 - 10V | DC 24V | 4000k, 235 lm | Ra≥80 | |||
| PWM | DC 24V | 5700k, 239 lm | Ra≥80 | |||
| DMX | DC 24V |
|
| 050.006 | 8° | 0.5 kg | ||||
| LED | 1×1.5W | 2.2W | ON/OFF | DC 24V | 2700k, 218 lm | Ra≥80 |
| 0 - 10V | DC 24V | 3000k, 229 lm | Ra≥80 | |||
| 1 - 10V | DC 24V | 4000k, 235 lm | Ra≥80 | |||
| PWM | DC 24V | 5700k, 239 lm | Ra≥80 | |||
| DMX | DC 24V |
|
| 050.006 | 8° | 0.5 kg | ||||
| LED | 1×1.5W | 2.2W | ON/OFF | DC 24V | 2700k, 218 lm | Ra≥80 |
| 0 - 10V | DC 24V | 3000k, 229 lm | Ra≥80 | |||
| 1 - 10V | DC 24V | 4000k, 235 lm | Ra≥80 | |||
| PWM | DC 24V | 5700k, 239 lm | Ra≥80 | |||
| DMX | DC 24V |
|
